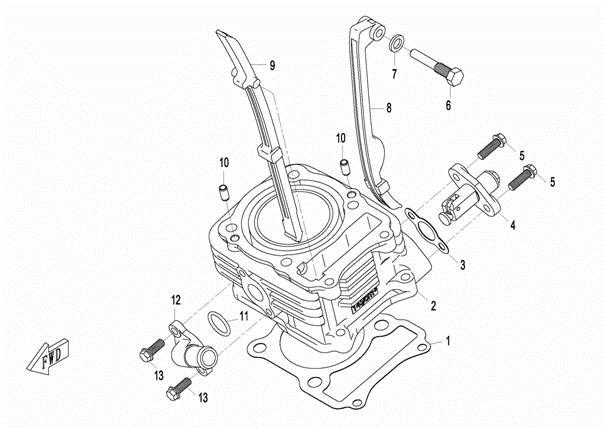

CYLINDER BODY ASSY - E02-3

No.

01
P/N (SKU): 0A70-023004-0G30
Part Name: GASKET, CYLINDER
Effective: 2021-02-26
Remarks: WITH NO ASBESTOS
Alternative parts:
Specification: MUSTARD GREEN
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 0A80-023100-0B210
Part Name: CYLINDER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: THE SIZE OF 57.000 - 57.010
Price: 42,50 € : 42,50 €
-+
02
P/N (SKU): 0A80-023100-0B220
Part Name: CYLINDER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: THE SIZE OF 57.010 - 57.019
Price: 42,50 € : 42,50 €
-+
03
P/N (SKU): 0A70-023001-0G30
Part Name: GASKET,TENSIONER
Effective: 2021-02-26
Remarks: WITH NO ASBESTOS
Alternative parts:
Specification: MUSTARD GREEN
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 0A70-023200-0B20
Part Name: TENSIONER ASSY
Effective: 2021-02-26
Alternative parts: 0A70-023200-10000
Specification: MATTE BLACK
Price: 8,10 € : 8,10 €
05
P/N (SKU): 0010-023008-0030
Part Name: BOLT M6x18
Effective: 2021-02-26
Remarks: is replaced by 0010-023008-0010
Alternative parts: 0010-023008-0010
Specification: M6x18
Price: 0,55 € : 0,55 €
06
P/N (SKU): 0180-023007-0030
Part Name: TENSIONER PLATE BOLT
Effective: 2021-02-26
Remarks: is replaced by 0180-023007-0010
Alternative parts: 0180-023007-0010
Price: 2,35 € : 2,35 €
-+
07
P/N (SKU): 0010-021016
Part Name: WASHER 8
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0A70-023300
Part Name: TENSION PLATE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
09
P/N (SKU): 0A70-023400
Part Name: CHAIN GUIDE
Effective: 2021-02-26
Alternative parts:
Price: 5,15 € : 5,15 €
-+
10
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: 6x12
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 0A70-060011
Part Name: O-RING, DRIVE SPROCKET BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0A70-023003-0B20
Part Name: JOINT, CYLINDER WATER INLET PIPE
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 5,15 € : 5,15 €
-+
13
P/N (SKU): 0010-090005-0030
Part Name: BOLT M6x16
Effective: 2021-02-26
Remarks: is replaced by 0010-090005-0010
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 0,55 € : 0,55 €
