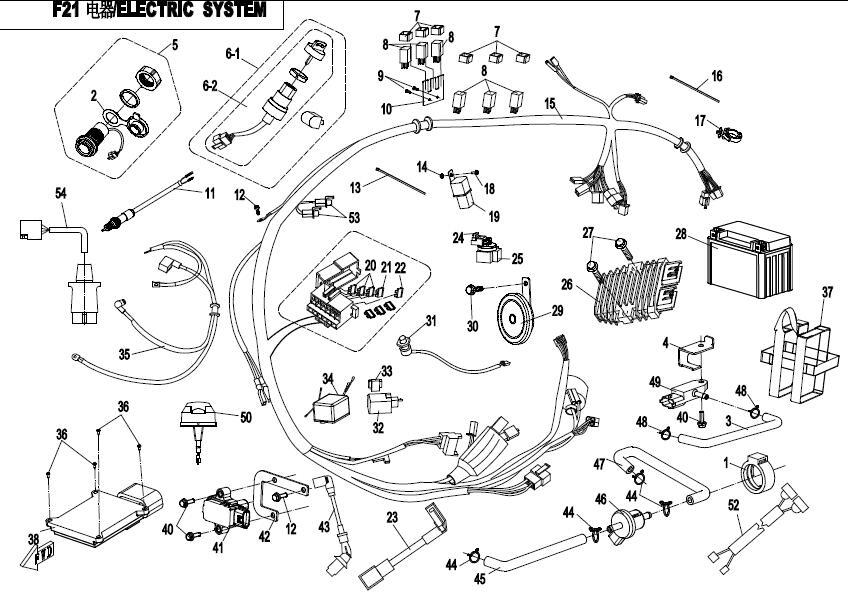

ELECTRIC SYSTEM - F21 | 2014, ATV, CF625-C

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 901F-000005

Part Name: RUBBER SLEEVE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 1,25 € : 1,25 €

P/N (SKU): 901B-150702

Part Name: ANTI-DUST CAP

Effective: 2021-02-26

Alternative parts:

Price: 2,05 € : 2,05 €

P/N (SKU): 901F-000003

Part Name: PRESSURE PIPE, AIR INLET

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

P/N (SKU): 901F-000004

Part Name:

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 7020-150500

Part Name: OUTPUT SEAT, POWER

Effective: 2021-02-26

Alternative parts:

Specification: ORDINARY

Price: 15,20 € : 15,20 €

P/N (SKU): 9010-010000

Part Name: LOCK ASSY

Effective: 2021-02-26

Alternative parts:

Price: 27,50 € : 27,50 €

P/N (SKU): 9010-150002

Part Name: RUBBER RING, AUXILIARY RELAY

Effective: 2021-02-26

Alternative parts:

Price: 4,10 € : 4,10 €

P/N (SKU): 9010-150350

Part Name: AUXILIARY RELAY

Effective: 2021-02-26

Alternative parts:

Price: 6,65 € : 6,65 €

P/N (SKU): 30902-0400820

Part Name: RIVET

Effective: 2021-02-26

Alternative parts: 30902-0401320

Specification: Ï4Ã8

Price: 0,55 € : 0,55 €

P/N (SKU): 901F-000007

Part Name: MOUNT PLATE, RELAY

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-150500

Part Name: SWITCH, REAR BRAKE

Effective: 2021-02-26

Alternative parts:

Price: 10,20 € : 10,20 €

P/N (SKU): 30006-060012840

Part Name: BOLT M6x12

Effective: 2021-02-26

Alternative parts: 30006-060012810

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 8010-150003

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Specification: 5x250

Price: 1,25 € : 1,25 €

P/N (SKU): 30202-060140

Part Name: NUT M6

Effective: 2021-02-26

Alternative parts: 30202-060110

Specification: M6

Price: 0,55 € : 0,55 €

P/N (SKU): 402A-150100-1000

Part Name: MAIN CABLE

Effective: 2021-02-26

Remarks: FOR LCD DASHBOARD

Alternative parts: 402A-150100-10001

Price: 205,30 € : 205,30 €

P/N (SKU): 401C-150100-3000

Part Name: MAIN CABLE

Effective: 2021-02-26

Alternative parts: 401C-150100-4000

Price: 203,80 € : 203,80 €

P/N (SKU): 401C-150100-4000

Part Name: MAIN CABLE

Effective: 2021-02-26

Remarks: For LOF

Alternative parts:

Price: 220,90 € : 220,90 €

P/N (SKU): 9010-150004

Part Name: TIE

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-150005

Part Name: CABLE CLIP

Effective: 2021-02-26

Alternative parts: 801F-100101

Price: 0,95 € : 0,95 €

P/N (SKU): 30112-060016440

Part Name: SCREW COMP

Effective: 2021-02-26

Alternative parts: 30112-060016410

Specification: M6x16

Price: 0,95 € : 0,95 €

P/N (SKU): 8030-151400

Part Name: DIVERTER RELAY

Effective: 2021-02-26

Alternative parts:

Price: 9,05 € : 9,05 €

P/N (SKU): 806A-151305

Part Name: FUSE 15A

Effective: 2021-02-26

Alternative parts: 806A-151303

Specification: 15A

Price: 0,55 € : 0,55 €

P/N (SKU): 806A-151302

Part Name: FUSE 10A

Effective: 2021-02-26

Alternative parts:

Specification: 10A

Price: 1,50 € : 1,50 €

P/N (SKU): 8080-151301

Part Name: FUSE 5A

Effective: 2021-02-26

Alternative parts:

Specification: 5A

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-150311-1000

Part Name: POSITIVE CABLE, STARTER RELAY

Effective: 2021-02-26

Remarks: 30A

Alternative parts:

Price: 13,20 € : 13,20 €

P/N (SKU): 9010-150301

Part Name: FUSE

Effective: 2021-02-26

Alternative parts:

Specification: 22A

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-150310-1000

Part Name: STARTER RELAY

Effective: 2021-02-26

Remarks: WITHOUT CABLE

Alternative parts: 9010-150310-10001/9CR6-150310

Price: 24,40 € : 24,40 €

P/N (SKU): 9010-150310-10001

Part Name: STARTER RELAY

Effective: 2021-02-26

Alternative parts:

Price: 24,40 € : 24,40 €

P/N (SKU): 9010-150310

Part Name: STARTER RELAY

Effective: 2021-02-26

Remarks: WITH CABLE (6mm)ï¼is replaced by 9010-150310-1000+9010-150311-1000

Alternative parts: 9010-150311-1000+9010-150310-10001

Price: 24,40 € : 24,40 €

P/N (SKU): 01AA-177000

Part Name: REGULATOR

Effective: 2021-02-26

Alternative parts:

Specification: 330W

Price: 102,20 € : 102,20 €

P/N (SKU): 30006-060030840

Part Name: BOLT M6x30

Effective: 2021-02-26

Alternative parts: 30006-060030810

Specification: M6x30

Price: 0,55 € : 0,55 €

P/N (SKU): 31021800

Part Name: BATTERY

Effective: 2021-02-26

Remarks: 18A/DYNAVOLT,is replaced by 31021801

Alternative parts:

Specification: 12V 18A DYNAVOLT

Price: 128,50 € : 128,50 €

P/N (SKU): 31023000

Part Name: BATTERY

Effective: 2021-02-26

Remarks: 30A,DYNOVOLT

Alternative parts: 31023004

Specification: DYNOVOLT, 12V30Ah

Price: 155,00 € : 155,00 €

P/N (SKU): 5020-150700

Part Name: ELECTRIC HORN

Effective: 2021-02-26

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 30006-080014840

Part Name:

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 6060-150800

Part Name: ADJUSTING BUTTON, CLOCK

Effective: 2021-02-26

Alternative parts:

Price: 4,05 € : 4,05 €

P/N (SKU): 9010-150340

Part Name: FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 13,30 € : 13,30 €

P/N (SKU): 8010-150002

Part Name: CUSHION WASHER, FLASHER

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-150720-5000

Part Name: CONTROL RELAY

Effective: 2021-02-26

Alternative parts:

Specification: CHANGE PLUG

Price: 68,40 € : 68,40 €

P/N (SKU): 901A-150200-1000

Part Name: STARTING TERMINAL CABLE ASSY

Effective: 2021-02-26

Alternative parts:

Price: 33,00 € : 33,00 €

P/N (SKU): 30110-420160040

Part Name: SELF-TAPPING SCREW ST4.2x16

Effective: 2021-02-26

Alternative parts: 30110-420160010

Specification: ST4.2x16

Price: 1,05 € : 1,05 €

P/N (SKU): 9060-152100

Part Name: BELT, BATTERY

Effective: 2021-02-26

Remarks: 30A

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 060B-174000

Part Name: ECU

Effective: 2021-02-26

Alternative parts:

Specification: BOSCH MSE3.0

Price: 208,00 € : 208,00 €

P/N (SKU): 30006-060025840

Part Name:

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 018B-178000

Part Name: IGNITION COIL

Effective: 2021-02-26

Alternative parts:

Price: 35,60 € : 35,60 €

P/N (SKU): 901F-000020

Part Name: INSTALLATION PLATE, IGNITION COIL

Effective: 2021-02-26

Alternative parts:

Price: 3,60 € : 3,60 €

P/N (SKU): 018B-179000

Part Name: HIGH-VOLTAGE IGNITION CABLE ASSY

Effective: 2021-02-26

Alternative parts:

Price: 25,50 € : 25,50 €

P/N (SKU): 30601-113010

Part Name: CLAMP

Effective: 2021-02-26

Alternative parts:

Specification: A13

Price: 0,55 € : 0,55 €

P/N (SKU): 901F-000002

Part Name: OUTLET HOSE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 1,50 € : 1,50 €

P/N (SKU): 018B-172000

Part Name: AIR CONTROL VALVE, IDLE

Effective: 2021-02-26

Alternative parts: 6KJB-1550A0

Price: 61,50 € : 61,50 €

P/N (SKU): 901F-000001

Part Name: INLET HOSE, IDLE VALVE

Effective: 2021-02-26

Alternative parts:

Price: 1,85 € : 1,85 €

P/N (SKU): 30601-111010

Part Name: CLAMP

Effective: 2021-02-26

Alternative parts:

Specification: A11

Price: 0,55 € : 0,55 €

P/N (SKU): 018B-175000

Part Name: AIR INTAKE PRESSURE SENSOR

Effective: 2021-02-26

Alternative parts:

Price: 60,40 € : 60,40 €

P/N (SKU): 401B-150200-2000

Part Name: POWER SOCKET, TRAILER

Effective: 2021-02-26

Alternative parts:

Price: 20,30 € : 20,30 €

P/N (SKU): 30105-050035440

Part Name:

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 6090-150500

Part Name: DIODE, STARTER

Effective: 2021-02-26

Alternative parts:

Price: 2,45 € : 2,45 €

P/N (SKU): 402A-150201

Part Name: ADAPTOR HARNESS, DASHBOARD

Effective: 2021-02-26

Alternative parts:

Price: 13,60 € : 13,60 €

P/N (SKU): 9010-151020

Part Name: ADAPTOR SEAT, TRAILER POWER

Effective: 2021-02-26

Alternative parts:

Price: 13,20 € : 13,20 €
