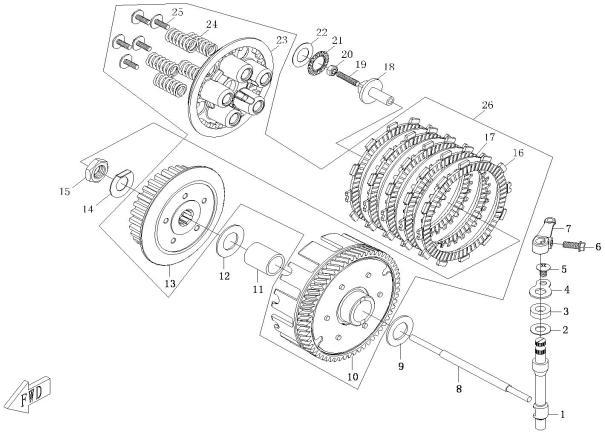

CLUTCH ASSY - E12 | 2013, ENGINE, 157MJ-2A | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0A70-052001

Part Name: CAMSHAFT, SEPARATE

Effective: 2021-02-26

Alternative parts:

Price: 5,90 € : 5,90 €

02

P/N (SKU): 0A70-052002

Part Name: WASHER 10x20x1

Effective: 2021-02-26

Alternative parts:

Specification: 10x20x1

Price: 1,25 € : 1,25 €

03

P/N (SKU): 0A70-052100

Part Name: OIL SEAL 10x20x6

Effective: 2021-02-26

Alternative parts:

Specification: 10x20x6

Price: 1,25 € : 1,25 €

04

P/N (SKU): 0A70-052003

Part Name: OIL SEAL GUARD, SEPARATE SWING ARM

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

05

P/N (SKU): 0A70-052004

Part Name: SCREW M6x10

Effective: 2021-02-26

Alternative parts:

Specification: M6x10

Price: 0,55 € : 0,55 €

06

P/N (SKU): 0010-090005-0030

Part Name: BOLT M6x16

Effective: 2021-02-26

Remarks: is replaced by 0010-090005-0010

Alternative parts: 0010-090005-0010

Specification: M6x16

Price: 0,55 € : 0,55 €

07

P/N (SKU): 0A70-052005

Part Name: SEPARATE SWING ARM

Effective: 2021-02-26

Alternative parts:

Price: 5,15 € : 5,15 €

08

P/N (SKU): 0A70-050003

Part Name: ROD, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 2,20 € : 2,20 €

09

P/N (SKU): 0A70-050002

Part Name: WASHER 20x34.5x2

Effective: 2021-02-26

Alternative parts:

Specification: 20x34.5x2

Price: 0,55 € : 0,55 €

10

P/N (SKU): 0A70-051100

Part Name: PRIMARY DRIVEN GEAR ASSY

Effective: 2021-02-26

Remarks: is replaced by 0A70-051000

Alternative parts: 0A70-051000

Price: 23,80 € : 23,80 €

11

P/N (SKU): 0A70-050001

Part Name: BUSHING, PRIMARY DRIVEN GEAR

Effective: 2021-02-26

Alternative parts:

Price: 4,40 € : 4,40 €

12

P/N (SKU): 0120-060007

Part Name: ADJUSTING WASHER 20

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

13

P/N (SKU): 0A70-051201

Part Name: HUB, CLUTCH

Effective: 2021-02-26

Remarks: SPS

Alternative parts:

Price: 25,70 € : 25,70 €

14

P/N (SKU): 0A70-050004

Part Name: LOCK WASHER

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

15

P/N (SKU): 0A70-050005

Part Name: NUT

Effective: 2021-02-26

Alternative parts:

Specification: M16X1.5

Price: 0,95 € : 0,95 €

16

P/N (SKU): 0A70-051210

Part Name: FRICTION DISC, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 2,95 € : 2,95 €

17

P/N (SKU): 0A70-051202

Part Name: DRIVEN DISC, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 2,60 € : 2,60 €

18

P/N (SKU): 0A70-050006

Part Name: BLOCK, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 4,05 € : 4,05 €

19

P/N (SKU): 0A70-050007

Part Name: ADJUST SCREW, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

20

P/N (SKU): 30200-060820

Part Name: NUT M6

Effective: 2021-02-26

Alternative parts:

Specification: M6

Price: 0,55 € : 0,55 €

21

P/N (SKU): 30407-01501

Part Name: THRUST BEARING@^BRACKET, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 2,20 € : 2,20 €

22

P/N (SKU): 30407-01502

Part Name: WASHER AS152801

Effective: 2021-02-26

Alternative parts:

Price: 0,95 € : 0,95 €

23

P/N (SKU): 0A70-051203

Part Name: PRESSURE PLATE, CLUTCH

Effective: 2021-02-26

Alternative parts:

Price: 8,80 € : 8,80 €

24

P/N (SKU): 0A70-051204

Part Name: SPRING, CLUTCH

Effective: 2021-02-26

Remarks: SPS

Alternative parts:

Price: 2,20 € : 2,20 €

25

P/N (SKU): 30008-050016840

Part Name:

Effective: 2021-02-26

Alternative parts:

Price: 0,55 € : 0,55 €

26

P/N (SKU): 0A70-051000

Part Name: CLUTCH SUB ASSY

Effective: 2021-02-26

Remarks: is replaced by 0A70-051000+0A70-040006

Alternative parts:

Price: 64,70 € : 64,70 €
