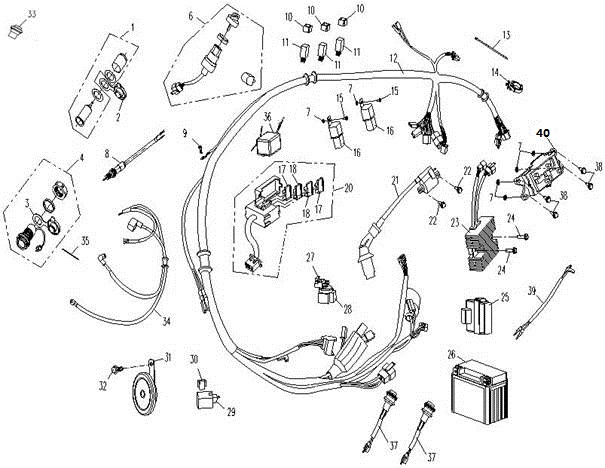

ELECTRIC SYSTEM - F19　

ELECTRIC SYSTEM - F19　

No.

01
P/N (SKU): 9010-150700
Part Name: SEAT, CIGARETTE LIGHTER
Alternative parts:
Price: 20,20 € : 20,20 €
-+
02
P/N (SKU): 9010-150001
Part Name: DUST CAP, CIGARETTE LIGHTER
Alternative parts:
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 9010-010000
Part Name: LOCK ASSY
Alternative parts:
Price: 27,50 € : 27,50 €
-+
07
P/N (SKU): 30202-060140
Part Name: NUT M6
Alternative parts: 30202-060110
Specification: M6
Price: 0,55 € : 0,55 €
08
P/N (SKU): 9010-150500
Part Name: SWITCH, REAR BRAKE
Alternative parts:
Price: 10,20 € : 10,20 €
-+
09
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
10
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY
Alternative parts:
Price: 4,10 € : 4,10 €
-+
11
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Alternative parts:
Price: 6,65 € : 6,65 €
-+
12
P/N (SKU): 9010-150100-E000
Part Name: MAIN CABLE
Remarks: is replaced by 905A-150100-5000+9010-150110+9010-170110-1000+9010-150101
Alternative parts: 905A-150100-5000+9010-150110+9010-170110-1000+9010-150101
Price: 102,80 € : 102,80 €
13
P/N (SKU): 9010-150004
Part Name: TIE BAND
Alternative parts:
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Alternative parts: 801F-100101
Price: 0,95 € : 0,95 €
15
P/N (SKU): 30112-060016440
Part Name: SCREW COMP
Alternative parts: 30112-060016410
Specification: M6x16
Price: 0,95 € : 0,95 €
16
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Alternative parts:
Price: 9,05 € : 9,05 €
-+
17
P/N (SKU): 9010-150601
Part Name: FUSE 10A
Alternative parts:
Specification: 10A
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 9010-150602
Part Name: FUSE
Alternative parts:
Specification: 15A
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 9010-150600
Part Name: FUSE BOX
Alternative parts:
Price: 9,10 € : 9,10 €
-+
21
P/N (SKU): 0180-152000
Part Name: IGNITION COIL
Alternative parts:
Price: 16,30 € : 16,30 €
-+
22
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Alternative parts: 30006-060020810
Specification: M6x20
Price: 0,55 € : 0,55 €
23
P/N (SKU): 0180-151000
Part Name: REGULATOR
Alternative parts:
Price: 101,70 € : 101,70 €
-+
24
P/N (SKU): 30006-060025840
Part Name: BOLT
Alternative parts: 30006-060025810
Specification: M6X25
Price: 0,55 € : 0,55 €
25
P/N (SKU): 0180-153000-1000
Part Name: IGNITER
Remarks: CANADA
Alternative parts:
Price: 43,60 € : 43,60 €
-+
25
P/N (SKU): 0180-153000
Part Name: IGNITER
Remarks: EURO
Alternative parts:
Price: 71,50 € : 71,50 €
-+
26
P/N (SKU): 31021800
Part Name: BATTERY
Remarks: 18A/DYNAVOLT，is replaced by 31021801
Alternative parts:
Specification: 12V 18A DYNAVOLT
Price: 128,50 € : 128,50 €
-+
27
P/N (SKU): 9010-150301
Part Name: FUSE
Alternative parts:
Specification: 22A
Price: 0,95 € : 0,95 €
-+
28
P/N (SKU): 9010-150310
Part Name: STARTER RELAY
Remarks: WITH CABLE (6mm)；is replaced by 9010-150310-1000+9010-150311-1000
Alternative parts: 9010-150310-10001+9010-150311-1000
Price: 24,40 € : 24,40 €
28
P/N (SKU): 9010-150311
Part Name: POSITIVE CABLE, STARTER RELAY
Remarks: 18A；is replaced by 9010-150311-1000(1)+9010-150310-1000
Alternative parts: 9010-150311-1000
Price: 6,25 € : 6,25 €
28
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001(THE OTHER MODELS)/9CR6-150310(ONLY CF500AU-6L
Price: 24,40 € : 24,40 €
29
P/N (SKU): 9010-150340
Part Name: FLASHER
Alternative parts:
Price: 13,30 € : 13,30 €
-+
30
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Alternative parts:
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Alternative parts:
Price: 7,00 € : 7,00 €
-+
32
P/N (SKU): 30006-080014840
Part Name: BOLT
Alternative parts: 30006-080014810
Specification: M8×14
Price: 0,55 € : 0,55 €
33
P/N (SKU): 8010-160003
Part Name: PARKING SWITCH
Alternative parts:
Price: 4,50 € : 4,50 €
-+
34
P/N (SKU): 901A-150200
Part Name: STARTING TERMINAL CABLE ASSY
Remarks: is replaced by 901A-150200-1000
Alternative parts: 901A-150200-1000
Price: 25,70 € : 25,70 €
35
P/N (SKU): 8010-150003
Part Name: TIE BAND
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
37
P/N (SKU): 8030-150300
Part Name: ADJUSTING BUTTON, CLOCK
Alternative parts:
Specification: WITH WIRE
Price: 4,05 € : 4,05 €
-+
38
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Alternative parts: 30006-060030810
Specification: M6x30
Price: 0,55 € : 0,55 €
39
P/N (SKU): 9010-150900
Part Name: LINK CABLE, BRAKE
Remarks: 2X4(2WD)
Alternative parts:
Specification: 2x4(2WD)
Price: 2,95 € : 2,95 €
-+
40
P/N (SKU): 9010-150720-A000
Part Name: CONTROL UNIT, WINCH
Remarks: ROCKY
Alternative parts:
Price: 60,70 € : 60,70 €
-+
40
P/N (SKU): 9010-150720-3000
Part Name: CONTROL UNIT, WINCH
Alternative parts:
Price: 68,40 € : 68,40 €
-+
