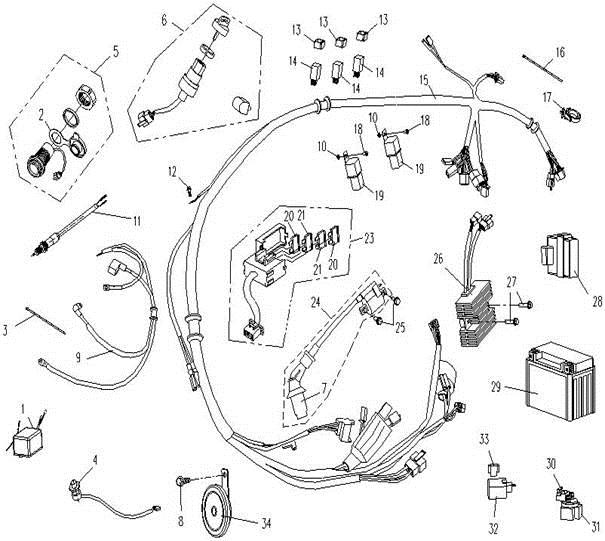

ELECTRIC SYSTEM (CAB.) - F21

No.

01
P/N (SKU): 9010-150720-3000
Part Name: CONTROL UNIT, WINCH
Effective: 2021-02-26
Alternative parts:
Price: 68,40 € : 68,40 €
-+
02
P/N (SKU): 901B-150702
Part Name: ANTI-DUST CAP
Effective: 2021-02-26
Alternative parts:
Price: 2,05 € : 2,05 €
-+
03
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
04
P/N (SKU): 6060-150800
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Price: 4,05 € : 4,05 €
-+
05
P/N (SKU): 901B-150700
Part Name: OUTPUT SEAT, POWER
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
06
P/N (SKU): 9010-010000
Part Name: LOCK ASSY
Effective: 2021-02-26
Alternative parts:
Price: 27,50 € : 27,50 €
-+
07
P/N (SKU): 0180-152010
Part Name: HIGH-TENSION CAP
Effective: 2021-02-26
Alternative parts:
Price: 1,85 € : 1,85 €
-+
08
P/N (SKU): 30006-080014840
Part Name:
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 901A-150200-1000
Part Name: STARTING TERMINAL CABLE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 33,00 € : 33,00 €
-+
10
P/N (SKU): 30202-060140
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: M6
Price: 0,55 € : 0,55 €
11
P/N (SKU): 9010-150500
Part Name: SWITCH, REAR BRAKE
Effective: 2021-02-26
Alternative parts:
Price: 10,20 € : 10,20 €
-+
12
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: M6x12
Price: 0,55 € : 0,55 €
13
P/N (SKU): 9010-150002
Part Name: RUBBER RING, AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 4,10 € : 4,10 €
-+
14
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 6,65 € : 6,65 €
-+
15
P/N (SKU): 905A-150100-5000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Price: 142,50 € : 142,50 €
-+
16
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 9010-150005
Part Name: CABLE CLIP
Effective: 2021-02-26
Alternative parts: 801F-100101
Price: 0,95 € : 0,95 €
18
P/N (SKU): 30112-060016440
Part Name: SCREW COMP
Effective: 2021-02-26
Alternative parts: 30112-060016410
Specification: M6x16
Price: 0,95 € : 0,95 €
19
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 9,05 € : 9,05 €
-+
20
P/N (SKU): 9010-150601
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 9010-150602
Part Name: FUSE
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9010-150603
Part Name: FUSE BOX HOUSING
Effective: 2021-02-26
Remarks: is replaced by 9010-150600
Alternative parts: 9010-150600
Price: 1,85 € : 1,85 €
23
P/N (SKU): 9010-150600
Part Name: FUSE BOX
Effective: 2021-02-26
Alternative parts:
Price: 9,10 € : 9,10 €
-+
24
P/N (SKU): 0180-152000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 16,30 € : 16,30 €
-+
25
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: M6x20
Price: 0,55 € : 0,55 €
26
P/N (SKU): 0180-151000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Price: 101,70 € : 101,70 €
-+
27
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-02-26
Remarks: M6×25
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 0180-153000
Part Name: IGNITER
Effective: 2021-02-26
Remarks: EURO
Alternative parts:
Price: 71,50 € : 71,50 €
-+
29
P/N (SKU): 31021800
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 18A/DYNAVOLT,is replaced by 31021801
Alternative parts:
Specification: 12V 18A DYNAVOLT
Price: 128,50 € : 128,50 €
-+
30
P/N (SKU): 9010-150301
Part Name: FUSE
Effective: 2021-02-26
Alternative parts:
Specification: 22A
Price: 0,95 € : 0,95 €
-+
31
P/N (SKU): 9010-150311
Part Name: POSITIVE CABLE, STARTER RELAY
Effective: 2021-02-26
Remarks: 18A;is replaced by 9010-150311-1000(1)+9010-150310-1000
Alternative parts: 9010-150311-1000
Price: 6,25 € : 6,25 €
31
P/N (SKU): 9010-150310-1000
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITHOUT CABLE
Alternative parts: 9010-150310-10001/9CR6-150310
Price: 24,40 € : 24,40 €
31
P/N (SKU): 9010-150310
Part Name: STARTER RELAY
Effective: 2021-02-26
Remarks: WITH CABLE (6mm);is replaced by 9010-150310-1000+9010-150311-1000
Price: 24,40 € : 24,40 €
32
P/N (SKU): 9010-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 13,30 € : 13,30 €
-+
33
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
34
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
