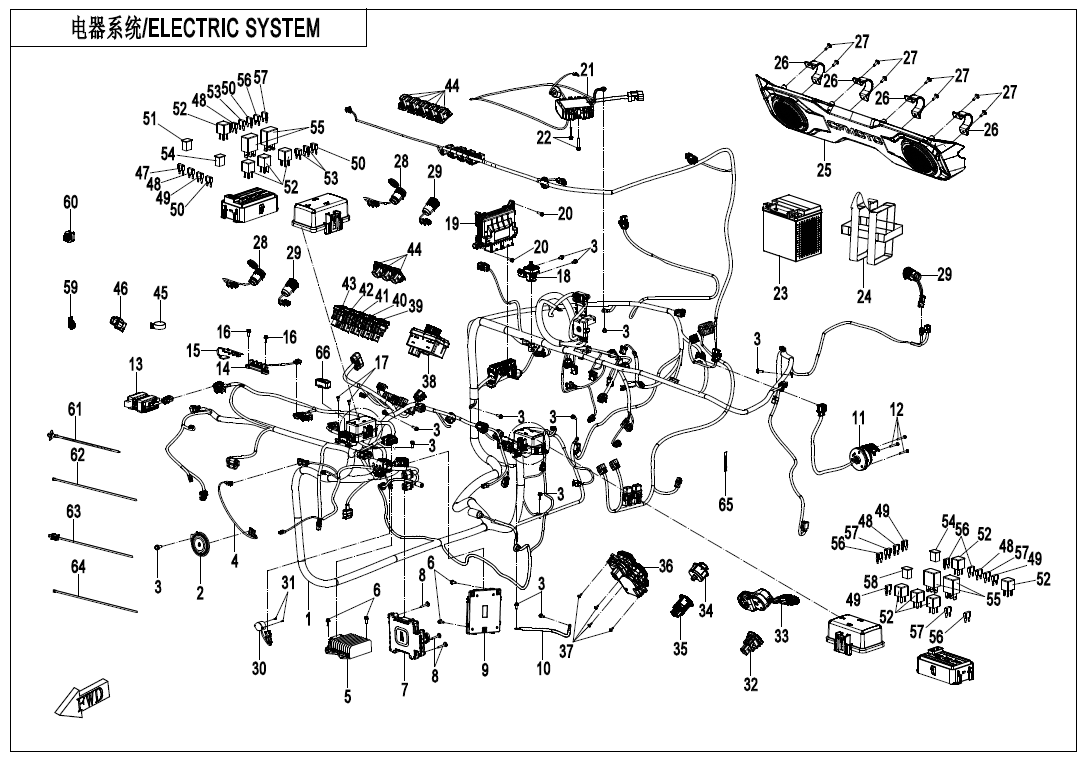

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

1
P/N (SKU): 5SYV-150100-8601
Part Name: MAIN CABLE
Effective: 2024-08-27
Alternative parts:
Price: 1 172,01 € : 1 172,01 €
-+
2
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2024-08-27
Alternative parts:
Price: 7,00 € : 7,00 €
-+
3
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-08-27
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
4
P/N (SKU): 5HYV-150191-2900
Part Name: ADAPTOR CABLE, HORN
Effective: 2024-08-27
Alternative parts: 5HYV-150191-2F00
Price: 12,10 € : 12,10 €
5
P/N (SKU): 5HYV-155210-6000
Part Name: SOUND AMPLIFIER
Effective: 2024-08-27
Alternative parts:
Price: 80,25 € : 80,25 €
-+
6
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-08-27
Alternative parts: 30006-060016870
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
7
P/N (SKU): 5HYV-150810-6000
Part Name: EPS CONTROLLER
Effective: 2024-08-27
Alternative parts:
Price: 178,00 € : 178,00 €
-+
8
P/N (SKU): 5BWV-040006-5000
Part Name: INNER HEX SLEF-TAPPING SCREW ST4.8x40
Effective: 2024-08-27
Alternative parts:
Specification: ST4.8x40
Price: 0,95 € : 0,95 €
-+
9
P/N (SKU): 5HYV-151900-6000
Part Name: VEHICLE CONTROL UNIT
Effective: 2024-08-27
Alternative parts:
Price: 226,01 € : 226,01 €
-+
10
P/N (SKU): 5HYV-150310-9000
Part Name: ENGINE GROUND WIRE
Effective: 2024-08-27
Alternative parts:
Price: 7,50 € : 7,50 €
-+
11
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2024-08-27
Alternative parts:
Price: 36,30 € : 36,30 €
-+
12
P/N (SKU): 30105-050035410
Part Name: SCREW
Effective: 2024-08-27
Alternative parts:
Specification: M5x35@TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-08-27
Remarks: Europe/Australia/Middle East/Africa/Southeast Asia/west Asia
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 413,00 € : 413,00 €
-+
14
P/N (SKU): 5BWV-156905-5000-M1
Part Name: EXTENSION POWER TERMINAL
Effective: 2024-08-27
Alternative parts:
Price: 36,60 € : 36,60 €
-+
15
P/N (SKU): 5BWV-156906-5000-M1
Part Name: EXTENSION POWER TERMINAL CAP
Effective: 2024-08-27
Alternative parts:
Price: 3,70 € : 3,70 €
-+
16
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2024-08-27
Alternative parts: 30006-060020870
Specification: M6×20
Price: 0,55 € : 0,55 €
17
P/N (SKU): 30118-480130010
Part Name: SELF-TAPPING SCREW
Effective: 2024-08-27
Alternative parts:
Specification: ST4.8x13@TRIVALENT CHROMIUM
Price: 0,75 € : 0,75 €
-+
18
P/N (SKU): 5BWV-150510-5300
Part Name: STARTER RELAY
Effective: 2024-08-27
Alternative parts:
Price: 25,30 € : 25,30 €
-+
19
P/N (SKU): 5HYV-001000-7000
Part Name: ECM ASSY
Effective: 2024-08-27
Remarks: T1B
Alternative parts:
Price: 238,00 € : 238,00 €
-+
19
P/N (SKU): 5HYV-001000-7000-10
Part Name: ECM ASSY
Effective: 2024-08-27
Remarks: T1A
Alternative parts:
Price: 238,00 € : 238,00 €
-+
20
P/N (SKU): 30006-060025870
Part Name: BOLT
Effective: 2024-08-27
Alternative parts:
Specification: GB/T5789_M6×25
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 5HYV-151000-6000
Part Name: REGULATOR
Effective: 2024-08-27
Alternative parts:
Price: 113,75 € : 113,75 €
-+
22
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2024-08-27
Alternative parts:
Specification: M6×30
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2024-08-27
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
24
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2024-08-27
Alternative parts:
Price: 2,95 € : 2,95 €
-+
25
P/N (SKU): 5HYV-150410-6000
Part Name: SPEAKER ASSY
Effective: 2024-10-16
Alternative parts:
Price: 36,91 € : 36,91 €
-+
26
P/N (SKU): 5HYV-150413-6000
Part Name: SPEAKER CLAMP
Effective: 2024-10-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2024-10-16
Alternative parts:
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 9AWV-151200-8000
Part Name: USB OUTPUT SEAT ASSY
Effective: 2024-08-27
Alternative parts:
Price: 37,00 € : 37,00 €
-+
29
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2024-08-27
Alternative parts:
Price: 20,90 € : 20,90 €
-+
30
P/N (SKU): 9DQV-150300-3000
Part Name: ALARM
Effective: 2024-08-27
Alternative parts: 9DQV-150300-3000-10
Price: 26,00 € : 26,00 €
31
P/N (SKU): 30110-290095010
Part Name: SELF-TAPPING SCREW
Effective: 2024-08-27
Alternative parts:
Specification: ST2.9x9.5@TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
32
P/N (SKU): 5HYV-169030-6000
Part Name: DIMMER SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 9,89 € : 9,89 €
-+
33
P/N (SKU): 5GYV-169480-1200
Part Name: SWITCHGROUP
Effective: 2024-08-27
Alternative parts:
Price: 29,40 € : 29,40 €
-+
34
P/N (SKU): 5HYV-169080-6000
Part Name: 2WD/4WD SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 23,09 € : 23,09 €
-+
35
P/N (SKU): 5HYV-169150-6000
Part Name: ONE-CLICK START SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 29,40 € : 29,40 €
-+
36
P/N (SKU): 5HYV-169390-6000
Part Name: E-SHIFTER
Effective: 2024-08-27
Alternative parts:
Price: 98,25 € : 98,25 €
-+
37
P/N (SKU): 30110-480190070
Part Name: SLEF-TAPPING SCREW
Effective: 2024-08-27
Alternative parts:
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 5HYV-169500-6001
Part Name: FUNCTION SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 54,00 € : 54,00 €
-+
39
P/N (SKU): 5HYV-169070-6000
Part Name: HAZARD SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 9,89 € : 9,89 €
-+
40
P/N (SKU): 5HYV-169540-6000
Part Name: EPB SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 9,89 € : 9,89 €
-+
41
P/N (SKU): 5HYV-169510-6000
Part Name: HOPPER SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 9,89 € : 9,89 €
-+
42
P/N (SKU): 5HYV-169360-6001
Part Name: WINCH SWITCH ASSY
Effective: 2024-08-27
Alternative parts:
Price: 19,20 € : 19,20 €
-+
43
P/N (SKU): 5HYV-169570-6000
Part Name: VR SWITCH
Effective: 2024-08-27
Alternative parts:
Price: 9,30 € : 9,30 €
-+
44
P/N (SKU): 5ASV-152200-6001
Part Name: SWITCH HOLE COVER
Effective: 2024-08-27
Alternative parts:
Specification: 6 PIN
Price: 1,25 € : 1,25 €
-+
45
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
46
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2024-08-27
Alternative parts:
Price: 4,05 € : 4,05 €
-+
47
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2024-08-27
Alternative parts:
Specification: 7.5A
Price: 0,55 € : 0,55 €
-+
48
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-08-27
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 806A-151308
Part Name: 30A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
50
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 0,55 € : 0,55 €
-+
51
P/N (SKU): CFCV-150011-4500-M1
Part Name: 60A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 1,20 € : 1,20 €
-+
52
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-08-27
Alternative parts:
Price: 3,70 € : 3,70 €
-+
53
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2024-08-27
Alternative parts:
Specification: 5A
Price: 0,55 € : 0,55 €
-+
54
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
55
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2024-08-27
Alternative parts:
Price: 6,65 € : 6,65 €
-+
56
P/N (SKU): 806A-151306
Part Name: 20A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
57
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-08-27
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
58
P/N (SKU): 5BY0-150303
Part Name: 50A FUSE
Effective: 2024-08-27
Alternative parts:
Price: 1,20 € : 1,20 €
-+
59
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
60
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-08-27
Alternative parts:
Price: 0,55 € : 0,55 €
-+
61
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
62
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-08-27
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
63
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Effective: 2024-08-27
Alternative parts:
Price: 0,95 € : 0,95 €
-+
64
P/N (SKU): 0000-000014
Part Name: TIE BAND
Effective: 2024-08-27
Alternative parts:
Specification: BLACK
Price: 0,95 € : 0,95 €
-+
65
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2024-08-27
Alternative parts:
Price: 0,55 € : 0,55 €
-+
66
P/N (SKU): CFCV-11H016-2000-M1
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2024-08-27
Alternative parts:
Price: 0,31 € : 0,31 €
-+
