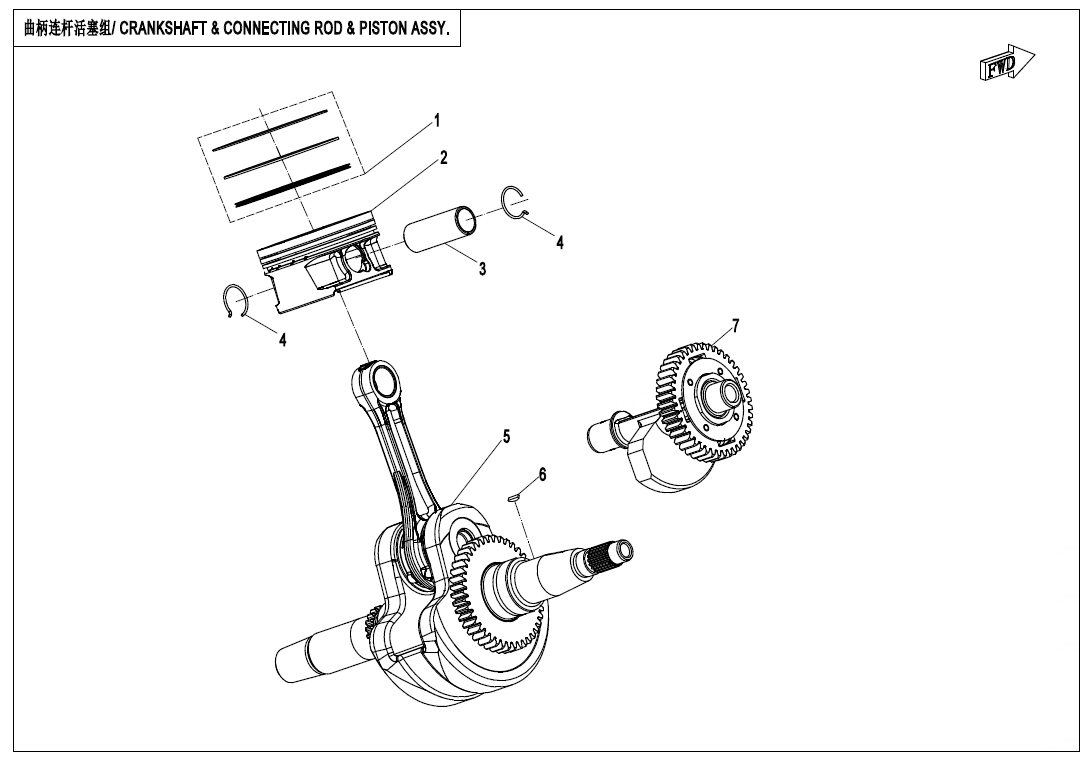

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2023-04-24
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
02
P/N (SKU): 0GS0-040001-00012
Part Name: PISTON
Effective: 2023-04-24
Alternative parts:
Specification: MARK1
Price: 35,60 € : 35,60 €
-+
02
P/N (SKU): 0GS0-040001-00022
Part Name: PISTON
Effective: 2023-04-24
Alternative parts:
Specification: MARK 2
Price: 35,60 € : 35,60 €
-+
03
P/N (SKU): 0800-040002-00001
Part Name: PISTON PIN
Effective: 2023-04-24
Alternative parts:
Price: 3,30 € : 3,30 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2023-04-24
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0GS0-041000-30014
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2023-04-24
Remarks: A GROUP
Alternative parts:
Price: 304,70 € : 304,70 €
-+
06
P/N (SKU): 0180-040007
Part Name: "WOODRUFF KEY
Effective: 2023-04-24
Alternative parts:
Specification: "
Price: 2,05 € : 2,05 €
-+
07
P/N (SKU): 0GS0-160000-00021
Part Name: BALANCER SHAFT ASSY
Effective: 2023-04-24
Remarks: B GROUP
Alternative parts:
Specification: GROUP B@MATCHED WITH MARK A BLANCER SHAFT ASSY
Price: 130,60 € : 130,60 €
-+
