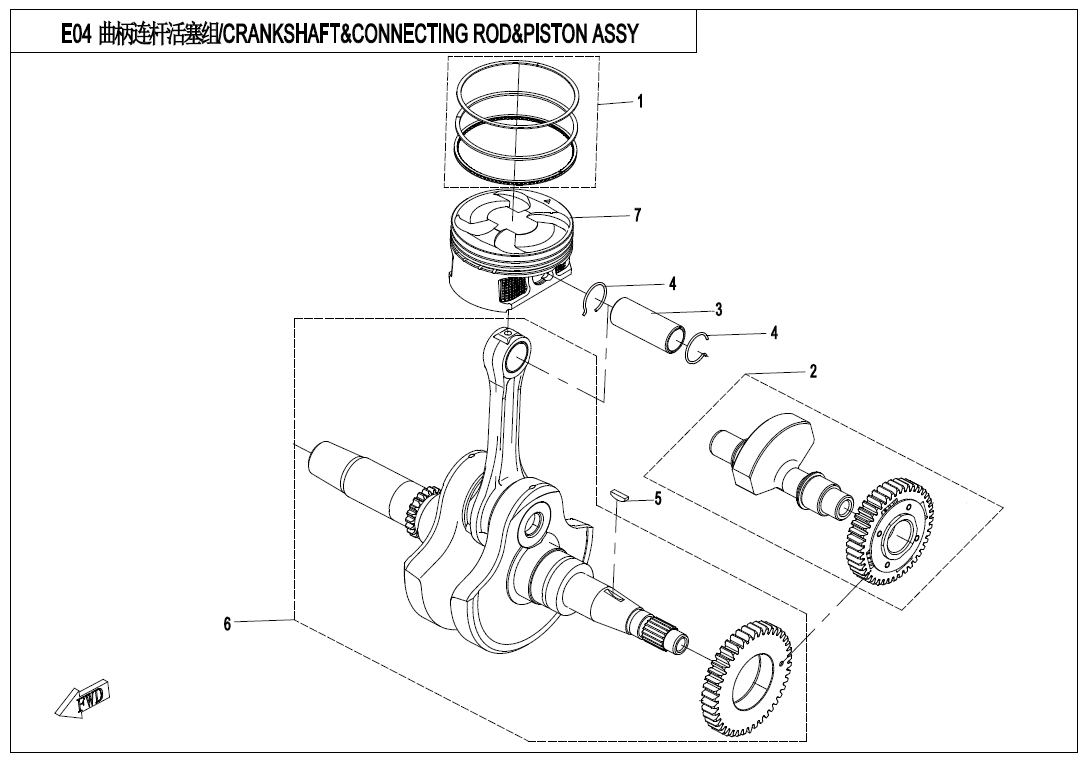

CRANKSHAFT/CONNECTING ROD/PISTON ASSY - E04

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2022-11-19
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
02
P/N (SKU): 0GR0-160000-00011
Part Name: BALANCER SHAFT ASSY
Effective: 2022-11-19
Remarks: A GROUP, MATCHED WITH 0GR0-041000-10021
Alternative parts:
Specification: MARK A_ MATCHED WITH MARK B CONNECTING ROD ASSY
Price: 112,30 € : 112,30 €
-+
02
P/N (SKU): 0GR0-160000-00021
Part Name: BALANCER SHAFT ASSY
Effective: 2022-11-19
Remarks: B GROUP, MATCHED WITH 0GR0-041000-10011
Alternative parts:
Specification: MARK B_ MATCHED WITH MARK A CONNECTING ROD ASSY
Price: 112,30 € : 112,30 €
-+
03
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2022-11-19
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2022-11-19
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0180-040007
Part Name: "WOODRUFF KEY
Effective: 2022-11-19
Alternative parts:
Specification: "
Price: 2,05 € : 2,05 €
-+
06
P/N (SKU): 0GR0-041000-10013
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-11-19
Alternative parts: 0GR0-041000-10014
Specification: MARK A@MATCHED WITH
Price: 283,70 € : 283,70 €
-+
06
P/N (SKU): 0GR0-041000-10023
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-11-19
Alternative parts: 0GR0-041000-10024
Specification: MARK B@MATCHED WITH
Price: 283,70 € : 283,70 €
06
P/N (SKU): 0GR0-041000-10024
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-12-21
Alternative parts:
Specification: MARK B_MATCHED WITH
Price: 299,30 € : 299,30 €
-+
06
P/N (SKU): 0GR0-041000-10014
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-12-21
Alternative parts:
Specification: MARK A_MATCHED WITH
Price: 299,30 € : 299,30 €
-+
07
P/N (SKU): 0800-040001-20012
Part Name: PISTON
Effective: 2022-11-19
Alternative parts:
Specification: MARK 1
Price: 58,00 € : 58,00 €
-+
07
P/N (SKU): 0800-040001-20022
Part Name: PISTON
Effective: 2022-11-19
Alternative parts:
Specification: MARK 2
Price: 58,00 € : 58,00 €
-+
