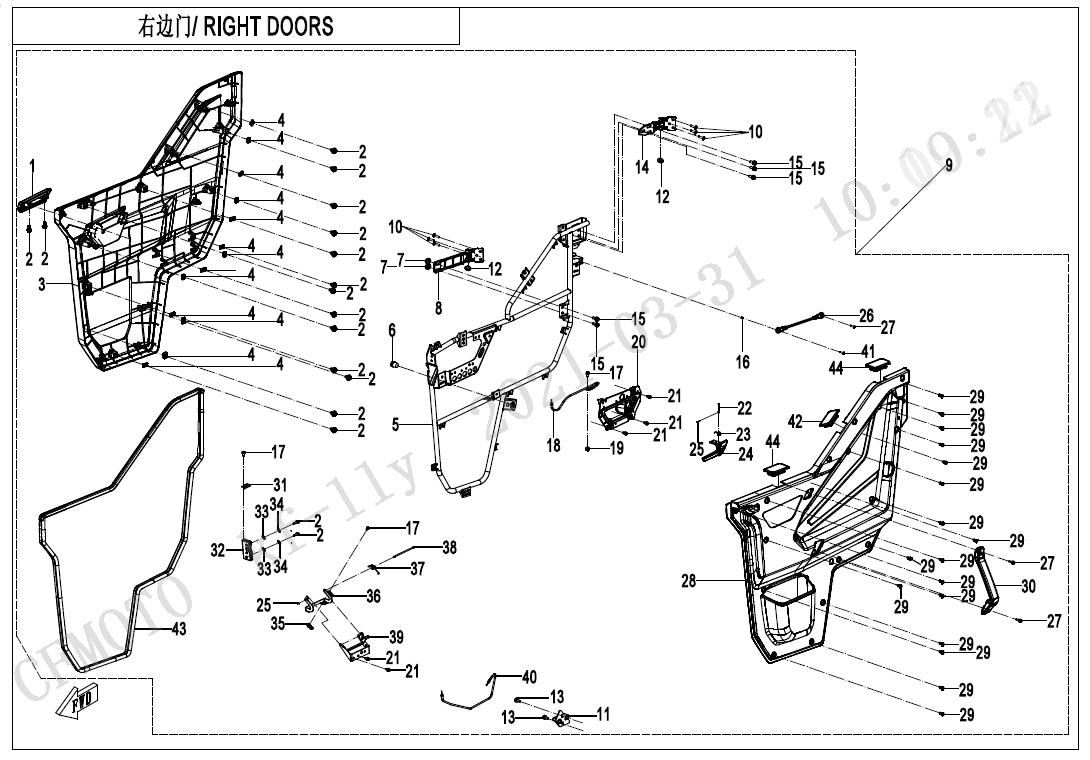

RIGHT DOORS - F37-4-V6

No.

01
P/N (SKU): 5HY#-374401-1000-0B800
Part Name: OUTSIDE HANDLE, RH DOOR
Effective: 2021-03-31
Alternative parts:
Price: 5,15 € : 5,15 €
-+
02
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-03-31
Alternative parts: 30006-060016870
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 5HYV-374002-1001-0B800
Part Name: DECO PLATE, RH LOWER DOOR
Effective: 2021-03-31
Alternative parts:
Price: 230,30 € : 230,30 €
-+
04
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP
Effective: 2021-03-31
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 5HY0-374200-10001
Part Name: RH LOWER DOOR FRAME ASSY
Effective: 2021-03-31
Alternative parts:
Price: 167,20 € : 167,20 €
-+
06
P/N (SKU): 9030-370901-10001
Part Name: CUSHION RUBBER
Effective: 2021-03-31
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-03-31
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
08
P/N (SKU): 5HY#-374600-1001
Part Name: RH LOWER CONNECTING PLATE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 33,40 € : 33,40 €
-+
09
P/N (SKU): 5HYV-3700H0-1001
Part Name: RH LOWER SIDE DOOR ASSY
Effective: 2021-03-31
Remarks: FOR HALF DOOR
Alternative parts:
Price: 591,40 € : 591,40 €
-+
09
P/N (SKU): 5HYV-3700G0-1001
Part Name: RH LOWER SIDE DOOR ASSY
Effective: 2021-04-02
Remarks: FOR WHOLE DOOR
Alternative parts:
Price: 591,40 € : 591,40 €
-+
10
P/N (SKU): 30122-080016810
Part Name: SCREW M8x16
Effective: 2021-03-31
Alternative parts:
Specification: M8x16
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 5HY0-374020
Part Name: RH LOCK GROOVE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 3,30 € : 3,30 €
-+
12
P/N (SKU): 30802-00605
Part Name: CIRCLIP
Effective: 2021-03-31
Alternative parts: 30802-00603
Specification: 6
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-03-31
Alternative parts:
Specification: M8×20
Price: 0,85 € : 0,85 €
-+
14
P/N (SKU): 5HY#-372600-1001
Part Name: RH UPPER CONNECTING PLATE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 32,60 € : 32,60 €
-+
15
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-03-31
Alternative parts:
Specification: M8×16
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2021-03-31
Alternative parts:
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2021-03-31
Alternative parts:
Specification: M5×12
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 5HY0-372310
Part Name: DOOR CABLE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 2,95 € : 2,95 €
-+
19
P/N (SKU): 30200-050810
Part Name: NUT
Effective: 2021-03-31
Alternative parts:
Specification: M5
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 5HY0-374307-10000
Part Name: SOCKET, RIGHT INSIDE HANDLE
Effective: 2021-03-31
Alternative parts:
Price: 3,70 € : 3,70 €
-+
21
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-03-31
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
22
P/N (SKU): 5HY0-372301
Part Name: PIN SHAFT
Effective: 2021-03-31
Alternative parts:
Price: 3,70 € : 3,70 €
-+
23
P/N (SKU): 5HY0-374302
Part Name: RH HANDLEBAR SPRING
Effective: 2021-03-31
Alternative parts:
Price: 0,95 € : 0,95 €
-+
24
P/N (SKU): 5HY#-374306-1000
Part Name: INNER HANDLE, RH DOOR
Effective: 2021-03-31
Alternative parts:
Price: 2,60 € : 2,60 €
-+
25
P/N (SKU): 30903-0160810
Part Name: COTTER PIN
Effective: 2021-03-31
Alternative parts: 30903-0162010
Specification: M16x8
Price: 0,55 € : 0,55 €
26
P/N (SKU): 5HY#-372050-1000
Part Name: LIMIT CABLE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 4,80 € : 4,80 €
-+
27
P/N (SKU): 8010-040038
Part Name: BOLT M6x22
Effective: 2021-03-31
Alternative parts:
Specification: M6x22
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 5HY#-374003-1000-11
Part Name: INNER PLATE, RH LOWER DOOR
Effective: 2021-03-31
Remarks: FOR HALF DOOR
Alternative parts:
Price: 69,30 € : 69,30 €
-+
28
P/N (SKU): 5HY#-374003-1001-10
Part Name: INNER PLATE, RH LOWER DOOR
Effective: 2021-03-31
Remarks: FOR WHOLE DOOR
Alternative parts:
Price: 69,30 € : 69,30 €
-+
29
P/N (SKU): 30118-420130010
Part Name: SELF-TAPPING SCREW ST4.2x13
Effective: 2021-03-31
Alternative parts:
Specification: ST4.2x13
Price: 0,75 € : 0,75 €
-+
30
P/N (SKU): 5HY0-374004
Part Name: INNER ARMREST, RH DOOR
Effective: 2021-03-31
Alternative parts:
Price: 8,10 € : 8,10 €
-+
31
P/N (SKU): 5HY0-372007
Part Name: CABLE BRACKET
Effective: 2021-03-31
Alternative parts:
Price: 0,95 € : 0,95 €
-+
32
P/N (SKU): 5HY0-374100
Part Name: RH DOOR LOCK ASSY
Effective: 2021-03-31
Alternative parts:
Price: 9,90 € : 9,90 €
-+
33
P/N (SKU): 30306-060112
Part Name: WASHER
Effective: 2021-03-31
Alternative parts: 30306-060142
Specification: φ6
Price: 0,55 € : 0,55 €
34
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2021-03-31
Alternative parts:
Specification: φ6
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 5HY0-374440
Part Name: RH CABLE BRACKET ASSY
Effective: 2021-03-31
Alternative parts:
Price: 0,95 € : 0,95 €
-+
36
P/N (SKU): 5HY0-374410-20000
Part Name: LOCK BRACKET, RH HANDLE
Effective: 2021-03-31
Alternative parts:
Price: 3,30 € : 3,30 €
-+
37
P/N (SKU): 5HY0-374404
Part Name: RH HANDLEBAR SPRING
Effective: 2021-03-31
Alternative parts:
Price: 0,95 € : 0,95 €
-+
38
P/N (SKU): 5HY0-372403
Part Name: PIN SHAFT
Effective: 2021-03-31
Alternative parts:
Price: 1,85 € : 1,85 €
-+
39
P/N (SKU): 5HY0-374420
Part Name: RH HANDLEBAR BRACKET ASSY
Effective: 2021-03-31
Alternative parts:
Price: 13,60 € : 13,60 €
-+
40
P/N (SKU): 5HY0-372430
Part Name: DOOR CABLE ASSY
Effective: 2021-03-31
Alternative parts:
Price: 2,60 € : 2,60 €
-+
41
P/N (SKU): 8010-000005-1000
Part Name: BOLT M6x17
Effective: 2021-03-31
Alternative parts:
Specification: M6x17
Price: 0,55 € : 0,55 €
-+
42
P/N (SKU): 5HYV-370010-1000
Part Name: RUBBER PLUG
Effective: 2021-03-31
Alternative parts:
Price: 1,85 € : 1,85 €
-+
43
P/N (SKU): 5HY0-372030-10000
Part Name: SEAL STRAP, HALF DOOR
Effective: 2021-03-31
Alternative parts:
Price: 28,20 € : 28,20 €
-+
44
P/N (SKU): 5HYV-370011-1000
Part Name: RUBBER PLUG
Effective: 2021-03-31
Alternative parts:
Price: 1,85 € : 1,85 €
-+
