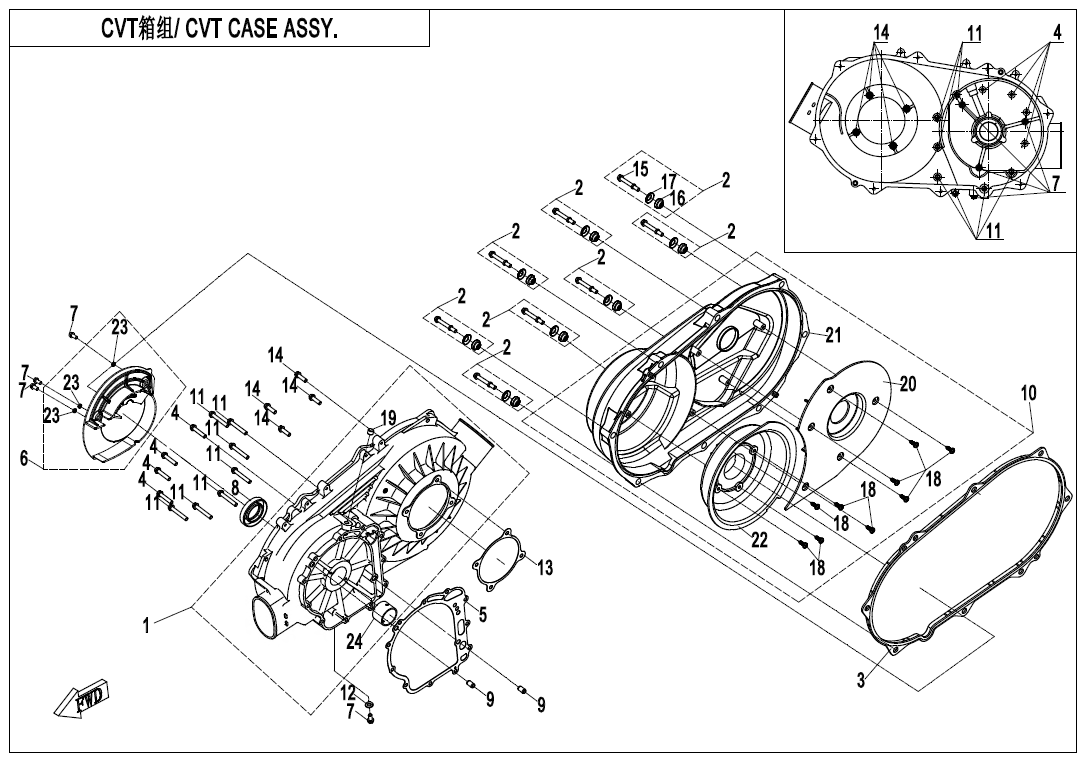

» » » CVT CASE ASSY - E01-3-V3
P/N (SKU): 0GR0-013100-10001
Price: 124,20 € : 124,20 €
P/N (SKU): 0GR0-013100-10000
Price: 146,40 € : 146,40 €
P/N (SKU): 0800-021100
Part Name: BOLT ASSY. CYLINDER HEAD COVER
P/N (SKU): 0GR0-013003
Part Name: SEAL RING, CVT COVER
P/N (SKU): 0010-060012-0010
Part Name: BOLT M6x30 Specification: M6x30
P/N (SKU): 0GR0-013001-10000
Part Name: PAPER GASKET, CVT CASE
P/N (SKU): 0GR0-013010
Part Name: CVT WIND GUARD ASSY
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12 Specification: M6x12
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL 32X55X10 Specification: 32X55X10
P/N (SKU): 0010-080008
Part Name: DOWEL PIN Dia 8x14 Specification: Dia 8x14
P/N (SKU): 0GR0-013300-20000
Part Name: COVER, CVT CASE
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40 Specification: M6x40
P/N (SKU): 0010-060009
Part Name: WASHER 6 Specification: 6
P/N (SKU): 0800-012002
Part Name: GASKET(2), CVT CASE
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20 Specification: M6x20
P/N (SKU): 0800-021101-1000
Part Name: BOLT, CYLINDER HEAD COVER
P/N (SKU): 0800-021103
Part Name: CAP, RUBBER WASHER
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW ST4.8x16 Specification: ST4.8x16
P/N (SKU): 0GR0-013302
Part Name: REAR HEAT INSULATION COVER
P/N (SKU): 0GR0-013002-20000
Part Name: COVER, CVT CASE
P/N (SKU): 0GR0-013301-10000
Part Name: FRONT HEAT INSULATION COVER
P/N (SKU): 0JY0-013102-00010
Part Name: PLAIN BEARING, CVT Specification: RED
P/N (SKU): 0JY0-013102-00020
Part Name: PLAIN BEARING, CVT Specification: BLUE
