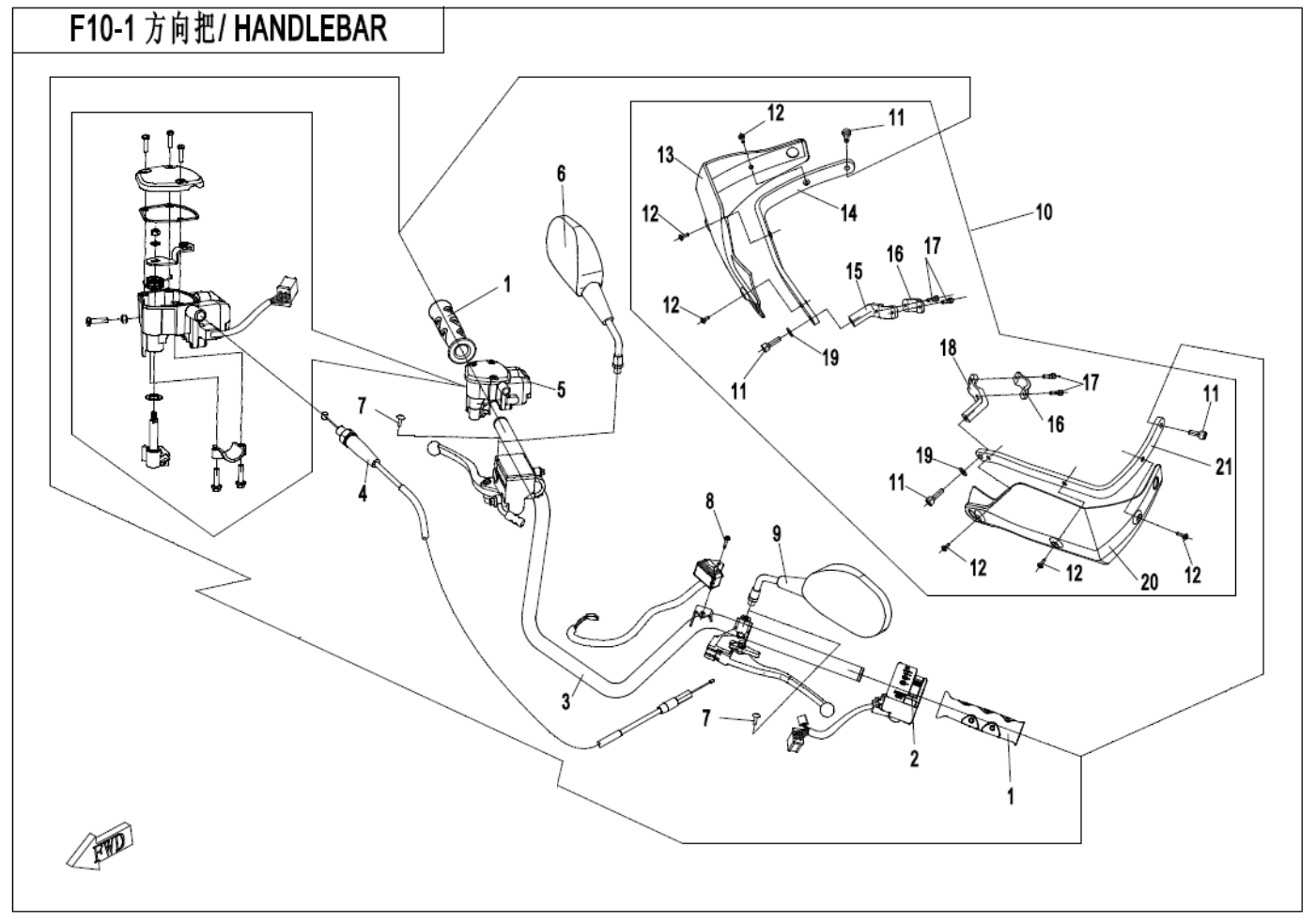

HANDLEBAR - F10-1

HANDLEBAR - F10-1

No.

01
P/N (SKU): A000-040202
Part Name: INNER HEX SCREW M5x14
Effective: 2021-02-26
Alternative parts:
Specification: M5x14
Price: 0,55 € : 0,55 €
-+
01
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts:
Price: 5,80 € : 5,80 €
-+
02
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,25 € : 1,25 €
-+
02
P/N (SKU): 9CR6-160600
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts: 9CR6-160600-00001
Specification: DAY RUNNING LIGHT
Price: 48,80 € : 48,80 €
03
P/N (SKU): 401B-100100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 401B-100100-10000
Price: 33,10 € : 33,10 €
04
P/N (SKU): 7020-160700-1000
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-02-26
Alternative parts: 7020-160700-10002
Price: 44,70 € : 44,70 €
04
P/N (SKU): 7020-160700
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-02-26
Alternative parts: 7020-160700-00002
Specification: ORDINARY
Price: 47,80 € : 47,80 €
04
P/N (SKU): 9AWB-160700
Part Name: HANDLEBAR SWITCHES ASSY, RH
Effective: 2021-02-26
Alternative parts: 9AWB-160700-00001
Specification: ORDINARY
Price: 31,20 € : 31,20 €
04
P/N (SKU): 9AWB-160700-10000
Part Name: HANDLEBAR SWITCHES ASSY, RH
Effective: 2021-02-26
Alternative parts: 9AWB-160700-10001
Specification: SUMITOMO PLUG
Price: 44,00 € : 44,00 €
04
P/N (SKU): 9GQ0-105000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 12,20 € : 12,20 €
-+
05
P/N (SKU): 9CR6-101212
Part Name: HANDGUARD LEVER
Effective: 2021-02-26
Alternative parts: 9CR6-101210-10000
Price: 15,40 € : 15,40 €
05
P/N (SKU): 9CRB-160700
Part Name: RH SWITCHES ASSY, DIFFERENTIAL
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 47,80 € : 47,80 €
-+
06
P/N (SKU): 30102-060020700
Part Name: SCREW M6x20
Effective: 2021-02-26
Alternative parts: 30102-060020810
Specification: M6x20
Price: 1,50 € : 1,50 €
06
P/N (SKU): 5190-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts:
Price: 5,80 € : 5,80 €
-+
07
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 9CR6-101203
Part Name: CONNECTOR, BRACKET
Effective: 2021-02-26
Alternative parts: 9CR6-101203-10000
Price: 1,50 € : 1,50 €
08
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30224-060800
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30224-060810
Price: 1,85 € : 1,85 €
09
P/N (SKU): 5190-200200
Part Name: REAR VIEW MIRROR, LH
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
10
P/N (SKU): 9CR6-101204
Part Name: PRESS COVER, BRACKET
Effective: 2021-02-26
Alternative parts: 9CR6-101204-10000
Price: 4,40 € : 4,40 €
10
P/N (SKU): 9050-100200
Part Name: HANDGUARD ASSY
Effective: 2021-02-26
Alternative parts:
Price: 95,80 € : 95,80 €
-+
11
P/N (SKU): 9CR6-101213
Part Name: PLASTIC BUSHING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30102-080020810
Part Name: SCREW M8x20
Effective: 2021-02-26
Alternative parts:
Specification: M8x20
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 7020-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts: 9AY0-200300
Price: 16,30 € : 16,30 €
12
P/N (SKU): 30105-050010410
Part Name: SCREW M5x10
Effective: 2021-02-26
Alternative parts:
Specification: M5x10
Price: 0,55 € : 0,55 €
-+
13
P/N (SKU): 9CR6-101100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts: 9CR6-101100-10000
Price: 44,00 € : 44,00 €
13
P/N (SKU): 401B-100220
Part Name: HAND GUARD ASSY, RH
Effective: 2021-02-26
Alternative parts:
Price: 24,60 € : 24,60 €
-+
14
P/N (SKU): 9CR6-101202
Part Name: SEAT, BRACKET
Effective: 2021-02-26
Alternative parts: 9CR6-101202-10000
Price: 7,35 € : 7,35 €
14
P/N (SKU): 401B-100222
Part Name: HAND GUARD, RH
Effective: 2021-02-26
Alternative parts: 401B-100220
Price: 20,20 € : 20,20 €
15
P/N (SKU): 30102-060025700
Part Name: SCREW M6x25
Effective: 2021-02-26
Alternative parts: 30102-060025810
Specification: M6x25
Price: 0,95 € : 0,95 €
15
P/N (SKU): 401B-100202
Part Name: BRACKET, RH HAND GUARD
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
16
P/N (SKU): 401B-100203
Part Name: RETAINING COVER
Effective: 2021-02-26
Alternative parts:
Price: 8,80 € : 8,80 €
-+
17
P/N (SKU): 9CR6-101205
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 30102-050020810
Part Name: SCREW M5x20
Effective: 2021-02-26
Alternative parts:
Specification: M5x20
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 9CR6-080400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
18
P/N (SKU): 401B-100201
Part Name: BRACKET, LH HAND GUARD
Effective: 2021-02-26
Alternative parts:
Price: 10,65 € : 10,65 €
-+
19
P/N (SKU): 9CR6-101210
Part Name: HAND GUARD ASSY, LH
Effective: 2021-02-26
Alternative parts: 9AWA-1013A0+9AWA-1012A0
Price: 60,00 € : 60,00 €
-+
19
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 8
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 9CR6-101220
Part Name: HAND GUARD ASSY, RH
Effective: 2021-02-26
Alternative parts: 9AWA-1013A0+9AWA-1012A0
Price: 35,90 € : 35,90 €
20
P/N (SKU): 401B-100210
Part Name: HAND GUARD ASSY, LH
Effective: 2021-02-26
Alternative parts:
Price: 70,20 € : 70,20 €
-+
21
P/N (SKU): 9CR6-190001
Part Name: CFMOTO LOGO
Effective: 2021-02-26
Remarks: 30x25.5
Alternative parts: 9AWV-190001-2E00
Specification: SMALL
Price: 4,80 € : 4,80 €
-+
21
P/N (SKU): 401B-100212
Part Name: HAND GUARD, LH
Effective: 2021-02-26
Alternative parts: 401B-100210
Price: 20,20 € : 20,20 €
22
P/N (SKU): 9CR6-101001
Part Name: TOP COVER, HANDLEBAR
Effective: 2021-02-26
Alternative parts:
Price: 5,10 € : 5,10 €
-+
23
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-02-26
Alternative parts:
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 7020-200200
Part Name: REAR VIEW MIRROR, LH
Effective: 2021-02-26
Alternative parts: 9AY0-200200
Price: 16,30 € : 16,30 €
25
P/N (SKU): 9CR6-160600-40000
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts:
Specification: WITH TURNING LIGHT, SUMITOMO PLUG
Price: 45,40 € : 45,40 €
-+
25
P/N (SKU): 9CR6-160600-30001
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts:
Specification: WITH NO TURNING LIGHT, SUMITOMO PLUG, USA
Price: 50,90 € : 50,90 €
-+
25
P/N (SKU): 905B-160600-2000
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts: 905B-160600-20001
Specification: HEDALIGHT NOT ALWAYS ON
Price: 38,40 € : 38,40 €
25
P/N (SKU): 905B-160600-1000
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts:
Specification: US
Price: 33,40 € : 33,40 €
-+
25
P/N (SKU): 9CR6-160600-10000
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts:
Specification: HEDALIGHT ALWAYS ON, WITH TURNING LIGHT, SUMITOMO PLUG
Price: 46,50 € : 46,50 €
-+
25
P/N (SKU): 9CR6-160600
Part Name: HANDLEBAR SWITCH, LH
Effective: 2021-02-26
Alternative parts: 9CR6-160600-00001
Specification: DAY RUNNING LIGHT
Price: 48,80 € : 48,80 €
26
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 12,80 € : 12,80 €
-+
